Your Position: Home > Products > Motor Series

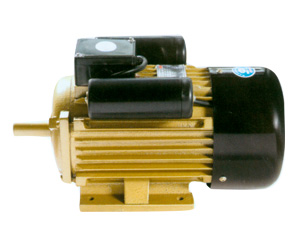

MINDONG Type 1.5KW Single phase
Model
Power
HP KW
 Current
(A)		 Voltage
(V)		 Speed
(r/min)		 Eff
(%)		 Power
factor		 Locked rotor
torque		 Locked rotor curret
Rated curret		 Pull-out torque Rated torque
Y801-2
1 0.75
 1.8 380 2830 75 0.84 2.2 6.5 2.3
Y802-2
1.5 1.1
 2.5 380 2830 77 0.86 2.2 7 2.3
Y801-4
3/4 0.55
 1.5 380 1390 73 0.76 2.4 6 2.3
Y802-4
1 0.75
 2.0 380 1390 74.5 0.76 2.3 6 2.3
Y90S-2
2 1.5
 3.4 380 2840 78 0.85 2.2 7 2.3
Y90L-2
3 2.2
 4.8 380 2840 80.5 0.86 2.2 7 2.3
Y90S-4
1.5 1.1
 2.8 380 1400 78 0.78 2.3 6.5 2.3
Y90L-4
2 1.5
 3.7 380 1400 79 0.79 2.3 6.5 2.3
Y90S-6
1 0.75
 2.3 380 910 72.5 0.70 2.0 5.5 2.3
Y90L-6
1.5 1.1
 3.2 380 910 73.5 0.72 2.0 5.5 2.2
Y100L-2
4 3
 6.4 380 2870 82 0.87 2.2 7 2.3
Y100L1-4
33 2.2
 5.0 380 1430 81 0.82 2.2 7 2.3
Y100L2-4
4 3
 6.8 380 1430 82.5 0.81 2.2 7 2.3
Y100L-6
2 1.5
 4.0 380 940 77.5 0.84 2.0 6 2.3
Y112M-2
5.5 4
 8.2 380 2890 85.5 0.07 2.2 7 2.2
Y112M-4
5.5 4
 8.8 380 1440 84.5 0.82 2.2 7 2.3
Y112M-6
3 2.2
 5.6 380 940 80.5 0.74 2.2 6 2.3
Y132S1-2
7.5 5.5
 11.1 380 2900 85.5 0.88 2.0 7 2.2
Y132S2-2
10 7.5
 15.0 380 2900 86.2 0.88 2.0 7 2.3
Y132S-4
7.5 5.5
 11.7 380 1440 85.5 0.84 2.2 7 2.3
Y132M-4
10 7.5
 15.4 380 1440 87 0.85 2.0 7 2.3
Y132S-6
4 3
 7.3 380 960 83 0.70 2.0 6.5 2.3
Y132M1-6
5.5 4
 9.4 380 960 84 0.77 2.0 6.5 2.2
Y132M2-6
7.5 5.5
 12.6 380 960 85.5 0.78 2.0 5.5 2.2
Y160M1-2
15 11
 21.8 380 2930 87.2 0.88 2.0 7.0 2.2
Y160M2-2
20 15
 29.4 380 2930 88.2 0.88 2.0 7.0 2.2
